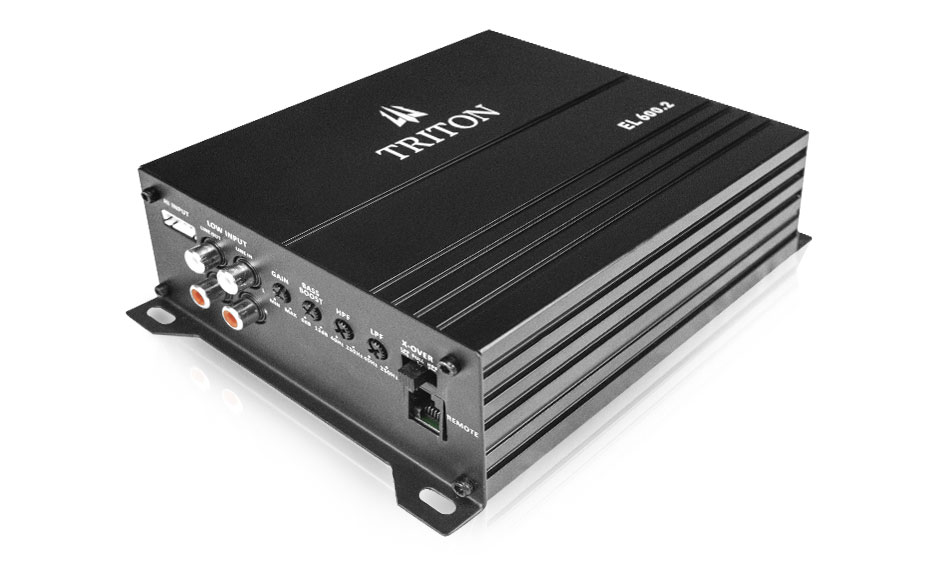

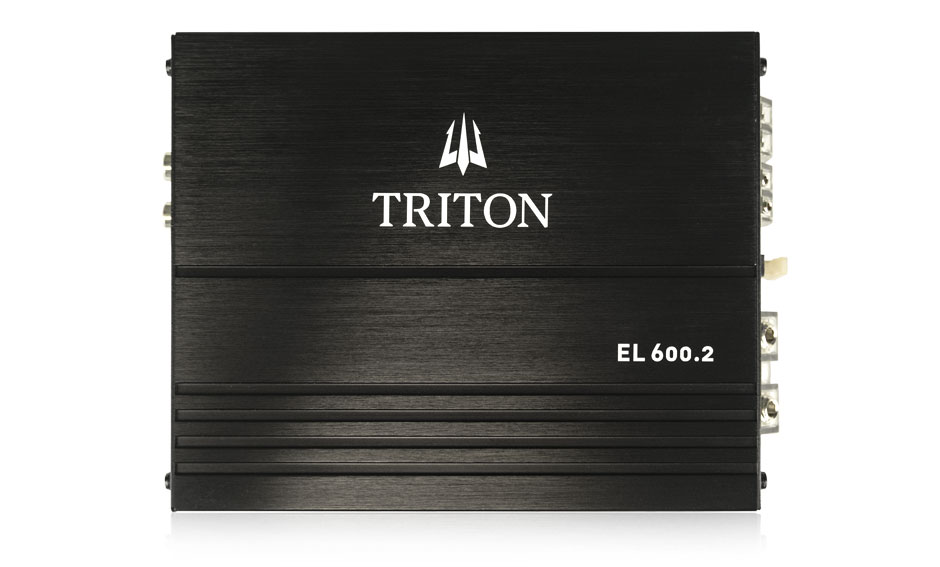

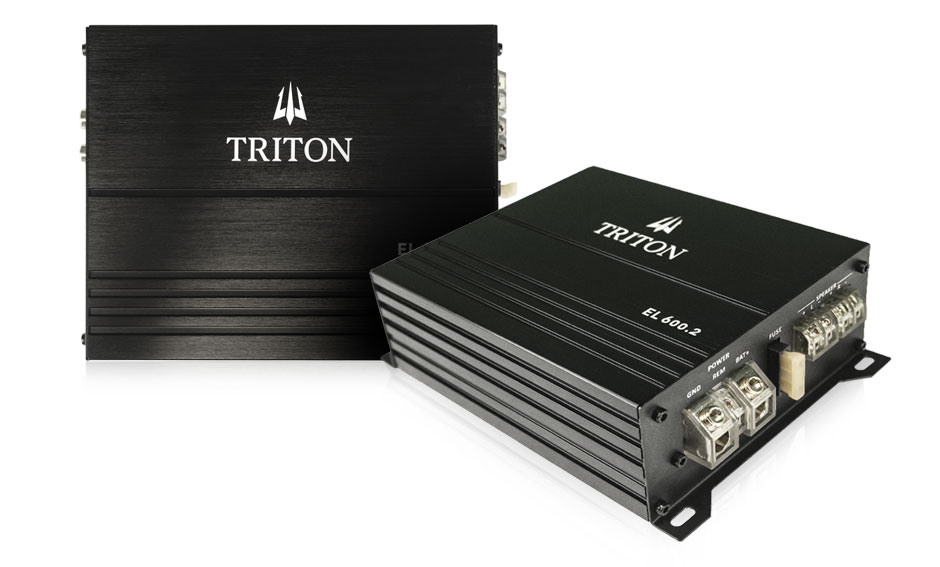

EL6002

Specifications

• Bridged RMS 4Ω @ 14.4V: 1 x 240W
• Power RMS 2Ω @ 14.4V: 2 x 120W
• Power RMS 4Ω @ 14.4V: 2 x 85W
• Peak Power: 600W
• THD+N @ Nominal Power: 1%
• Frequency Response: 20Hz ~ 20kHz
• SNR: 100dB



• Input Sensitivity: 0.2V to 6V
• Damping Factor: 260
• Operating Voltage: 9V to 16V

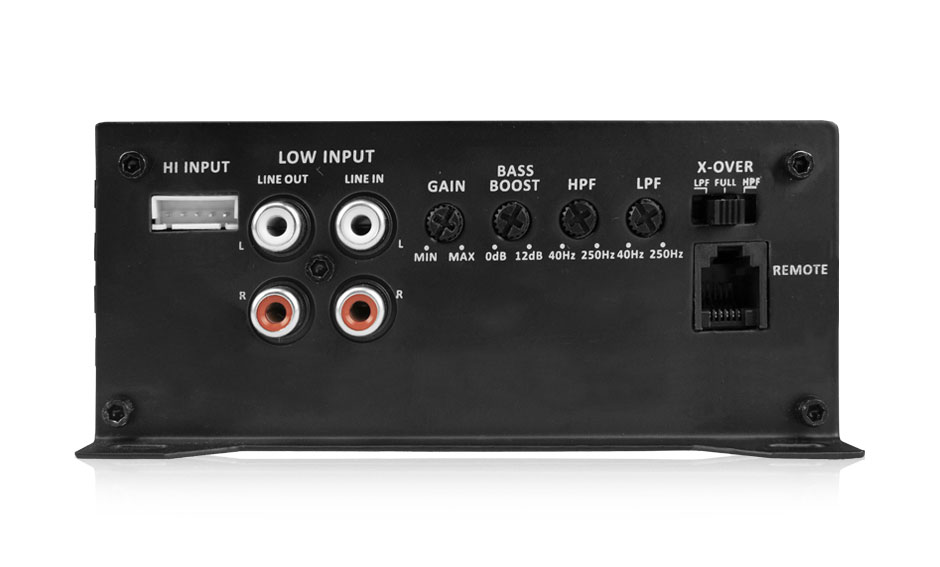

• Low Pass Filter: 40Hz to 250Hz
• Bass Boost: Adjustable 0-12dB
• Bass Boost Center Frequency: 45Hz
• Dimensions: 6” W x 5” L x 2.1” H
